Adstation™ 5610-347/5680-347
3.5V Modular Diagnostix Wall System with Clock Aneroid
The Best Design and the Finest Components
ADC products are manufactured from the finest materials with an uncompromising commitment to craftsmanship and durability. We offer proprietary features not found anywhere else, like gasket-sealed chestpieces, Adsoft Plus silicone eartips, the Adcuff with Size Guide marking system, and our remarkable gauge movements. Compare the quality and performance – and most important, the value – and you’ll discover the ADC difference.
Domestic Assembly, Inspection, and Packaging
The medical device market is rich with manufacturers. Some boast cheap imports that are often of questionable quality. Others sell high-quality products at higher prices. We offer the best of both worlds. We strive to bring you the highest quality instruments by combining fine craftsmanship from the world’s leading subcontractors, with domestic inspection, assembly, and packaging in our New York facility. Most of the core diagnostic products we offer are fully assembled in the U.S. from globally sourced components to guarantee that your experience with our products will be nothing short of excellent.
Rigorous Quality Control
We subject virtually every component to rigorous quality control checks using custom-built testing equipment like gauge endurance machines, valve-and-bladder leak test machines, and thermometer baths. These ensure the parts used in our products meet or beat the toughest national and international standards on the market today. As part of our commitment to quality, ADC has earned and maintains certification to the ISO 13485 quality management system standard, specifically written for medical device manufacturers.
Award-Winning Customer Service
We’ve been winning awards almost as long as we’ve been in business, recognizing individual products and product lines, overall performance, customer support programs, and industry leadership. Our state-of-the-art distribution, combined with a knowledgeable, courteous staff, guarantees that the service you receive will be as outstanding as the products we deliver.
Commitment to Social Responsibility
Here at ADC we believe we have a responsibility to help others, whether they are local, national, or international. As a company, we dedicate our time and resources towards bettering the world we live in. From our partnership with the AHRC in providing employment for adults with disabilities, to direct financial support (through our cause-branded products) to the American Cancer Society and Els for Autism, to medical supply donations to organizations like AmeriCares and Project Hope, our social responsibility programs reach all corners of the globe.

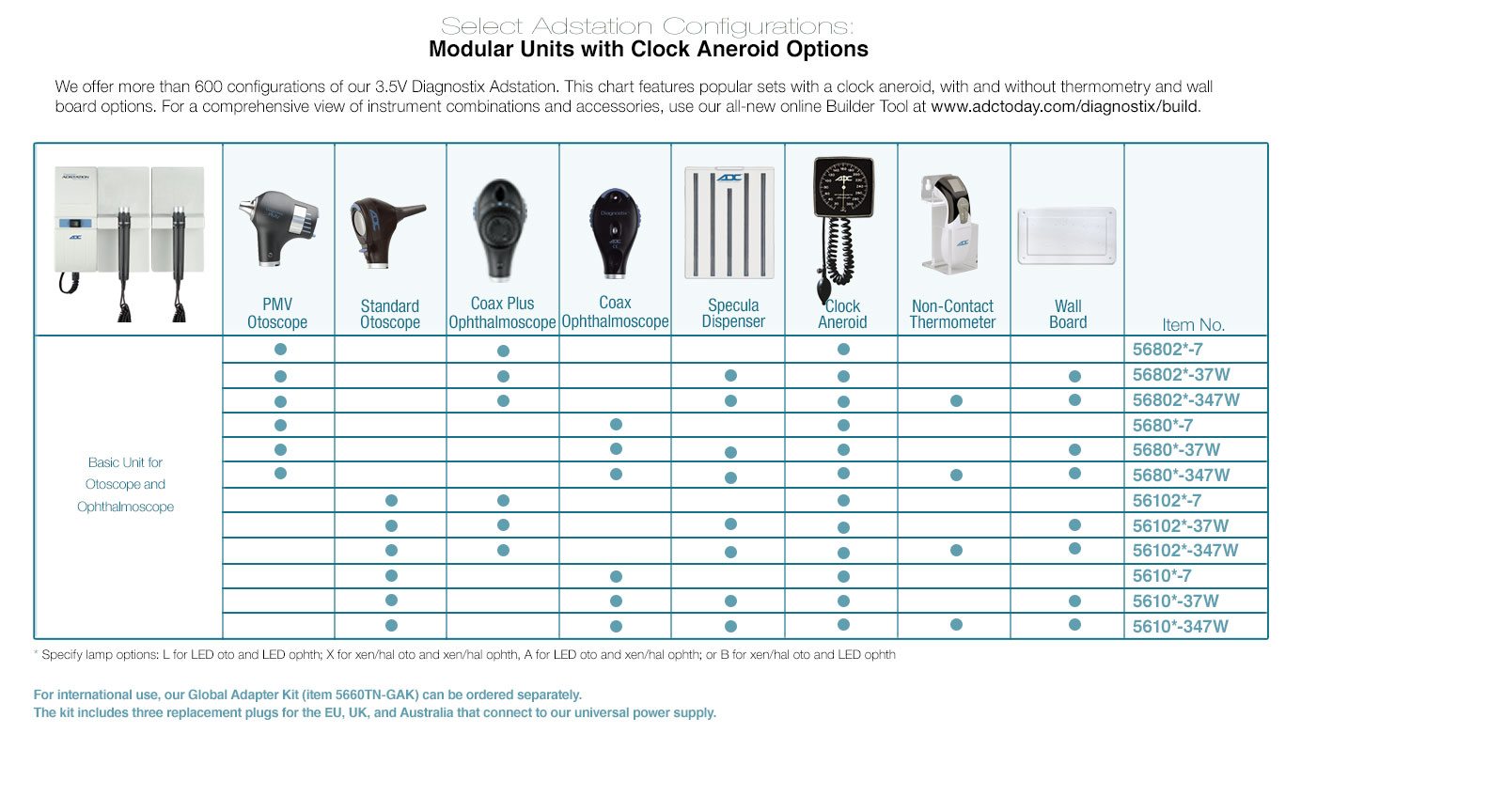

Our 3.5V diagnostic EENT instruments are among the most critical tools for performing a comprehensive physical exam. ADC offers more than 1,000 configurations of our 3.5V Diagnostix Adstation, a wall-mounted solution that puts these essential instruments within easy reach. This page features several modular configurations that combine a clock aneroid sphygmomanometer with our otoscope and ophthalmoscope base unit.
Adstation 5610-347 and 5680-347 wall systems feature:
- Newly redesigned Diagnostix Clock Aneroid and cuff storage basket, coiled tubing, adult and large adult inflation systems
- 3.5V Diagnostix Coax Plus Ophthalmoscope or Coax Ophthalmoscope
- 3.5V Diagnostix PMV Otoscope or Standard Otoscope
- Add a 3.5V Diagnostix Throat Illuminator or Dermascope
- Choose from Halogen/Xenon or high-performance AdLED lighting technology
-
Lifetime warranty on Diagnostix clock aneroid
-
Three-year warranty on Adcuff inflation systems
- Five-year warranty on wall transformer and extension module
- Five-year warranty on instrument heads
- Lifetime warranty on AdLED lamps
Newly Redesigned Wallboard – Begins shipping April 15:
- Universal, one-size design wallboard measures 11.8" X 32" (board only)
- Simplified Z-clip mount for secure, easy-to-hang installation
- Made from compressed particle board with pre-drilled mounting holes
Other popular configurations:
- For basic modular systems, see our Basic 3.5V Diagnostix Wall System page.
- For modular systems with an ADView 2 automated diagnostic station, see our Wall System with ADView 2 page.
- For a comprehensive view of all instrument combinations and accessories, use our all-new online Builder Tool.
For international use, our Global Adapter Kit (item 5660TN-GAK) can be ordered separately. The kit includes three replacement plugs for the EU, UK, and Australia that connect to our universal power supply.
| Literature Name | Download | |
|---|---|---|
 |
Adstation Extension Module - Assembly Instructions | Download |
|
|
Adstation Modular Diagnostic Station - Instructions for Use | Download |
|
|
Adstation Specula Extenstion - Assembly Instructions | Download |
|
|
Adstation Wall Drill Plan | Download |
|
|
Adstation Wallboard Mounting Instructions | Download |
|
|
Diagnostix 3.5v Diagnostic Instruments - Instructions for Use | Download |
|
|
Diagnostix Sphygs - Instructions for use | Download |
|
|
Diagnostic Instruments - Literature | Download |
|
|
Diagnostix PMV Otoscope | Download |
|
|
Diagnostix PMV Otoscope Comparison Chart | Download |
 |
Adsula Specula Extenstion - Instrucciones de montaje | Download |
|
|
Diagnostix 3.5v Instrumentos de Diagnóstico - Instrucciones de uso | Download |
|
|
Diagnostix Sphygs - Instrucciones de uso | Download |
|
|
Estación de diagnóstico modular Adstation - Instrucciones de uso | Download |
|
|
Instrucciones de conexión del transformador de supresión y extensión | Download |
|
|
Instrucciones de montaje del tablero de anuncios | Download |
 |
Diagnostix 3.5v Instruments de Diagnostic - Mode d'emploi | Download |
|
|
Diagnostix Sphygs - Mode d'emploi | Download |
|
|
Extensions de spéculation d'adstation - Instructions d'assemblage | Download |
|
|
Instructions de connexion du transformateur et de l'extension Adstation | Download |
|
|
Instructions de montage de la carte murale Adstation | Download |
|
|
Station de diagnostic modulaire Adstation - Instructions d'utilisation | Download |
 |
Adstation Modular Diagnostic Station - Gebrauchsanweisung | Download |
|
|
Adstation Specula Extenstion - Montageanleitung | Download |
|
|
Adstation Wallboard Montageanleitung | Download |
|
|
Anweisungen für die Adstertransformator- und Erweiterungsverbindung | Download |
|
|
Diagnostix 3.5V Diagnostic Instruments - Gebrauchsanweisung | Download |
|
|
Diagnostix Sphygs - Gebrauchsanweisung | Download |
 |
Adstation Specula Extenstion - Istruzioni di montaggio | Download |
|
|
Diagnostix 3.5V strumenti diagnostici - Istruzioni per l'uso | Download |
|
|
Diagnostix Sphygs - Istruzioni per l'uso | Download |
|
|
Istruzioni di connessione per l'adattamento e l'estensione | Download |
|
|
Istruzioni di montaggio a parete Adstation | Download |
|
|
Stazione di diagnostica modulare Adstation - Istruzioni per l'uso | Download |
 |
Diagnostix Instrumentos de Otorrinolaringologia | Download |
| Battery Handle: | NA |
| Power Supply: | 5660T |
| Extension Module: | 5660E |
| Otoscope Head: | 5420X |
| Ophthalmoscope Head: | 5440X |
| Reusable Ear Specula: | NA |
| Reusable Ear Specula: | NA |
| Reusable Ear Specula: | NA |
| Lamp for Otoscope: | 5411-4X |
| Lamp for Ophthalmoscope: | 5412-4X |
| Storage Case: | NA |
| Disp. Specula 2.75mm: | 5182 |
| Disp. Specula 4.25mm: | 5185 |
| Insufflator Bulb: | 5122N |
| Insufflator Fitting: | NA |
| Global Adapter Kit: | 5660TN-GAK |
Helpful Links:
Learning Center:
Anatomy of a 3.5v Rechargeable Ophthalmoscope
Features at a glance:
AC Power Supply
Universal AC power supply with U.S. plug. For international use, our Global Adapter Kit (item 5660TN-GAK) can be ordered separately
UL
UL Approved
Latex Content
This products is not made with Natural Rubber Latex
Phthalate Content
This products is made without phthalates
Multiple Warranties
Warranty extends to the original retail purchaser, commences with date of delivery. Adstation transformer warranted for 5 years. Instruments heads and handles warranted for 2 years. ADled lamps warranted for Life.
